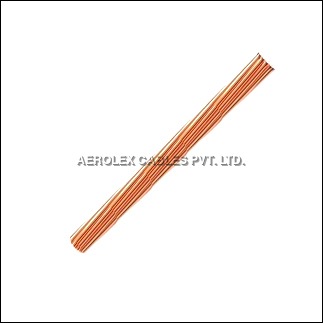

Bare Copper Conductors

Get a Price/Quote

Product Details:

Length 500 Meter (m)
Voltage Other Ampere (amp)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Bare Copper Conductors Price And Quantity

Minimum Order Quantity 500 Meters Meter

Bare Copper Conductors Product Specifications

Voltage Other Ampere (amp)
Length 500 Meter (m)

Bare Copper Conductors Trade Information

FOB Port Mundra & Nhava Sheva
Supply Ability 200000 Meter Per Day
Delivery Time 1 Week
Sample Available Yes
Sample Policy Free samples are available
Packaging Details In a sea worthy wooden reels.
Main Domestic Market All India
Certifications UL, Ce, IS, etc.

Product Description

Bare Copper Conductors are used as essential parts of integrated service data network system, telecommunication equipment and CCTV system to name a few. Featured with double jacketed or single jacketed structure, the cables containing these types of conductors are suitable both for indoor and outdoor applications purpose. Standard grade PVC material is used to develop their jacket part. The provided conductors constitute of multiple metal wires that are developed in concentric layered pattern. High transmission efficiency, ease of maintenance and rust proof design are some of the special features of these conductors. We are reckoned as an eminent manufacturer and exporter of good quality Bare Copper Conductors.

Key Features:

The offered conductors are jacketed with PVC material
High conductivity level and longevity are some of the main features of these conductors
Perfect for cables used in indoor and outdoor
Cost effectiveness

Specifications

Stranded Copper Conductor For Water Cooled Cables
Bare Stranded Copper Conductors -as per BS125, BS6360, IS8130, IEC 60228,
Mainly known as bare copper conductor, earthing conductors, grounding conductors, cables for grounding, earthing accessories, earth wire, earth cable, cables for earthing, ground cable, yellow/green cable, earthing leads.

Nominal Cross Section Area Sq. mm	Nos. / Size of Wire Nos./ mm	Conductor Resistance at 20^oC (max) Ohm/ Km
6	7/1.04	3.08
10	7/1.35	1.83
16	7/1.70	1.15
25	7/2.14	0.727
35	7/2.52	0.524
50	19/1.78	0.387
70	19/2.14	0.268
95	19/2.52	0.193
120	37/2.03	0.153
150	37/2.25	0.124
185	37/2.52	0.099
240	61/2.25	0.0754
300	61/2.52	0.061
400	61/2.85	0.047

Note: Sheath thickness, Insulation thickness and overall dimensions are nominal values. The number of wires is approximate & strand diameter is nominal; they shall be such as to satisfy the needs of conductor resistance as per IS 8130/1984, BS-6360, IEC-60228 & VDE-0295.
